XAXIS ROD END BALL JOINTS

Get 45˚ of articulation when you build with these forged steel alloy threaded receivers and xAxis™ sealed flex joints. Joints don't come any bigger or tougher than this one. It is perfect for the most rugged applications. Get the increased angularity of a mono-ball that has been equipped with high mis-alignment inserts, the reduced compliance of a spherical bearing, and better durability than rubber and urethane bushings. Sealed boots, moly grease and a highly polished electroless nickel 2" ball will provide extended life in any environment. This design and construction will handle anything you can throw at it. This assembly utilizes a snap ring for positive retention and allows for easy replacement.

Find out about our entire xAxis™ line - download the xAxis pdf flyer here.

LM15730: RH 3/4"-16 X 10MM BH X 2" W

  • Perfect upgrade for Jeep TJ aftermarket front upper control arm bushings. Technical Data Sheet: Here

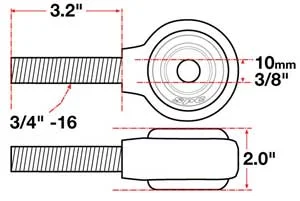

LM15731: LH 3/4"-16 X 10MM BH X 2" W

  • Perfect upgrade for front and rear TJ aftermarket upper control arm bushings. Technical Data Sheet: Here

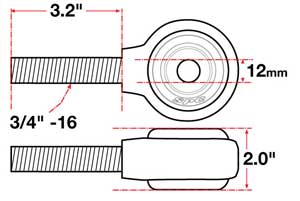

LM15732: RH 3/4"-16 X 12MM BH X 2" W

  • Perfect upgrade for JK front upper control arm bushings. Technical Data Sheet: Here

LM15733: LH 3/4"-16 X 12MM BH X 2" W

  • Perfect upgrade for JK front upper control arm bushings. Technical Data Sheet: Here

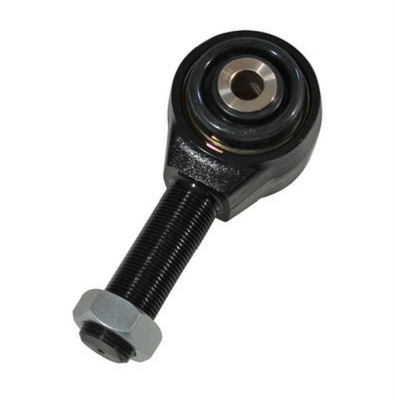

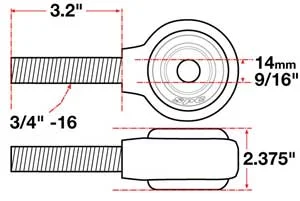

LM15734: RH 3/4"-16 X 14MM BH X 2.375"W

  • Perfect upgrade for Jeep JK rear upper control arm bushings. (Is your Jeep running 5/8" bolts on the lower control arms? Check out our joint with a larger bolt hole p/n LM15740.) Technical Data Sheet: Here

LM15735: LH 3/4"-16 X 14MM BH X 2.375"W

  • Perfect upgrade for Jeep JK rear upper control arm bushings. (Is your Jeep running 5/8" bolts on the lower control arms? Check out our joint with a larger bolt hole p/n 15741.) Technical Data Sheet: Here

LM15736: RH 1”-1/4 X 5/8" BH X 2.625" W

  • Perfect upgrade for Jeep TJ and JK lower control arms modified for 5/8"-16mm bracket bolts. Technical Data Sheet: Here

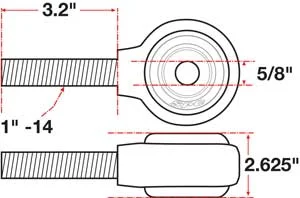

LM15737: LH 1"-14 X 5/8" BH X 2.625" W

  • Perfect upgrade for Jeep TJ and JK lower control arms modified for 5/8"-16mm bracket bolts. Technical Data Sheet: Here

LM15738: RH 1-1/4”-12 X 5/8" BH X 2.625" W

  • Perfect upgrade for heavy duty aftermarket Jeep TJ and JK lower control arms modified for 5/8”-16mm bracket bolts.

LM15739: LH 1-/14"-12 X 5/8" BH X 2.625" W

  • Perfect upgrade for heavy duty aftermarket Jeep TJ and JK lower control arms modified for 5/8”-16mm bracket bolts.

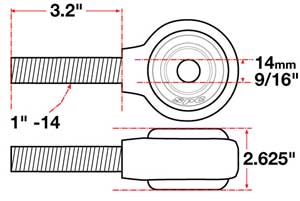

LM15740: RH 1"-14 X 9/16" BH X 2.625" W

  • Perfect upgrade for Jeep TJ and JK lower control arm bushings on Jeeps that have had their Lower control arm bolts upsized from 14mm to 5/8". (Is your jeep running OE sized 14mm bolts on the lower control arms? Check out our joint with standard hole size of 14mm, p/n LM15734.) Technical Data Sheet: Here

LM15741: LH 1"-14 X 9/16" BH X 2.625" W

  • Perfect upgrade for Jeep TJ and JK lower control arm bushings on Jeeps that have had their Lower control arm bolts upsized from 14mm to 5/8". (Is your jeep running OE sized 14mm bolts on the lower control arms? Check out our joint with standard hole size of 14mm, p/n LM15735.) Technical Data Sheet: Here

LM15742: RH 1-1/4"-14 X 9/16” BH X 2.625" W

  • Perfect upgrade for Jeep TJ and JK lower control arm bushings. Technical Data Sheet: Here

LM15743: LH 1-1/4"-14 X 9/16” BH X 2.625" W

  • Perfect upgrade for Jeep TJ and JK lower control arm bushings. Technical Data Sheet: Here

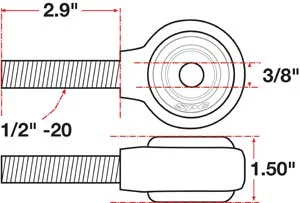

LM15744: RH 1/2"-20 X 3/8" BH X 1.5" W

  • 45° of articulation. Technical Data Sheet: Here

LM15745: LH 1/2"-20 X 3/8" BH X 1.5" W

  • 45° of articulation. Technical Data Sheet: Here

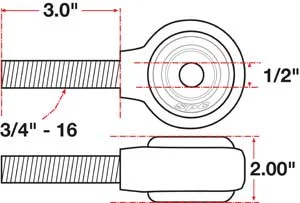

LM15746: RH 3/4"-16 X 1/2" BH X 2.0" W

  • 45° of articulation. Technical Data Sheet: Here

LM15747: LH 3/4"-16 X 1/2" BH X 2.0" W

  • 45° of articulation. Technical Data Sheet: Here

LM15748: RH 1-1/4"-12 X 5/8" BH X 2.5" W

  • 45° of articulation. Technical Data Sheet: Here

LM15749: LH 1-1/4"-12 X 5/8" BH X 2.5" W

  • 45° of articulation. Technical Data Sheet: Here

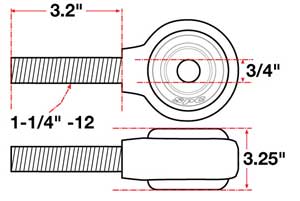

LM15750: RH 1 1/4"-12 X .75" BH X 3.25" W

  • 45° of articulation. Technical Data Sheet: Here

LM15751: LH 1 1/4"-12 X .75" BH X 3.25" W

  • 45° of articulation. Technical Data Sheet: Here

LM15752: RH 3/4"-16 X 12mm BH X 40mm W

  • 45° of articulation. Technical Data Sheet: Here

LM15753: LH 3/4"-16 X 12mm BH X 40mm W

  • 19° of articulation. Technical Data Sheet: Here

LM15754: RH M18x1.5 X 12mm BH X 40mm W

  • 19° of articulation. Technical Data Sheet: Here

LM15755: LH M18x1.5 X 12mm BH X 40mm W

  • 19° of articulation. Technical Data Sheet: Here

LM15764: RH 3/4 - 16 X 12mm BH X 45mm W

  • 19° of articulation. Technical Data Sheet: Here

LM15765: LH 3/4 - 16 X 12mm BH X 45mm W

  • 19° of articulation. Technical Data Sheet: Here

LM15766: RH M18x1.5 X 12mm BH X 45mm W

  • 19° of articulation. Technical Data Sheet: Here

LM15767: LH M18x1.5 X 12mm BH X 45mm W

  • 19° of articulation. Technical Data Sheet: Here

LM15768: RH 3/4 - 16 X 12mm BH X 47mm W

  • 36° of articulation. Technical Data Sheet: Here

LM15769: LH 3/4 - 16 X 12mm BH X 47mm W

  • 36° of articulation. Technical Data Sheet: Here

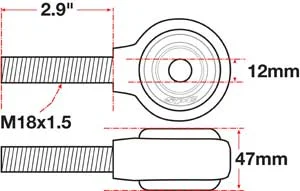

LM15770: RH M18X1.5 X 12mm BH X 47mm W

  • 36° of articulation. Technical Data Sheet: Here

LM15771: RH M18X1.5 X 12mm BH X 47mm W

  • 36° of articulation. Technical Data Sheet: Here

LM15772: RH 3/4" - 16 X 12mm BH X 50mm W

  • 36° of articulation. Technical Data Sheet: Here

LM15773: LH 3/4" - 16 X 12mm BH X 50mm W

  • 36° of articulation. Technical Data Sheet: Here

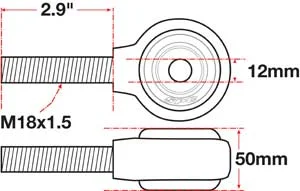

LM15774: RH M18X1.5 X 12mm BH X 50mm W

  • 36° of articulation. Technical Data Sheet: Here

LM15775: LH M18X1.5 X 12mm BH X 50mm W

  • 36° of articulation. Technical Data Sheet: Here

LM15780: RH 3/4" - 16 X 12mm BH X 57mm W

  • 36° of articulation. Technical Data Sheet: Here

LM15781: LH 3/4" - 16 X 12mm BH X 57mm W

  • 36° of articulation. Technical Data Sheet: Here

LM15782: RH M18X1.5 X 12mm BH X 57mm W

  • 36° of articulation. Technical Data Sheet: Here

LM15783: LH M18X1.5 X 12mm BH X 57mm W

  • 36° of articulation. Technical Data Sheet: Here

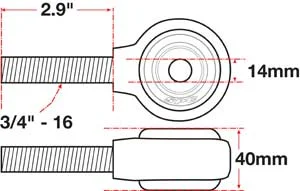

LM15784: RH 3/4" X 16 X 14mm BH X 40mm W

  • 19° of articulation. Technical Data Sheet: Here

LM15785: LH 3/4" X 16 X 14mm BH X 40mm W

  • 19° of articulation. Technical Data Sheet: Here

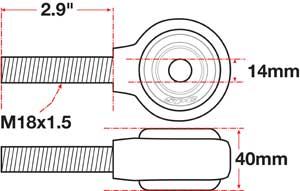

LM15786: RH M18X1.5 X 14mm BH X 40mm W

  • 19° of articulation. Technical Data Sheet: Here

LM15787: LH M18X1.5 X 14mm BH X 40mm W

  • 19° of articulation. Technical Data Sheet: Here

LM15792: RH 3/4" X 16 X 12mm BH X 44.5mm W

  • 19° of articulation. Technical Data Sheet: Here

LM15793: LH 3/4" X 16 X 12mm BH X 44.5mm W

  • 19° of articulation. Technical Data Sheet: Here

LM15794: RH M18X1.5 X 12mm BH X 44.5mm W

  • 19° of articulation. Technical Data Sheet: Here

LM15795: LH M18X1.5 X 12mm BH X 44.5mm W

  • 19° of articulation. Technical Data Sheet: Here
