WELD-IN RECEIVERS WITH 2 SNAP RINGS

Use this weld in receiver to create your own control arm or chassis mount with an xAxis™ sealed flex joint. This weld-in end ring is designed with optimal press fit for the xAxis and includes two snap rings for retention and an access window for easy snap ring removal.

Find out about the entire Builder Series line, including xAxis™ line - download the Builder Series pdf flyer here.

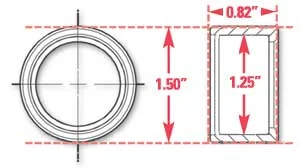

LM15520: O.D. - 1.50", Width - .82", I.D. - 1.25"

Technical Data Sheet: Here

Suggested Press Adaptor: LM29607

LM15521: O.D. - 2.25", Width - 1.12", I.D. - 1.75"

Technical Data Sheet: Here

Suggested Press Adaptor: LM29608

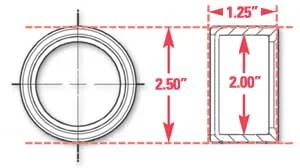

LM15522: O.D. - 2.50", Width - 1.25", I.D. - 2.00"

Technical Data Sheet: Here

Suggested Press Adaptor: LM29610

LM15523: O.D. - 3.00", Width - 1.56", I.D. - 2.50"

Technical Data Sheet: Here

Suggested Press Adaptor: LM29612

LM15524: O.D. - 2.25", Width - 1.07", I.D. - 1.8125"

Technical Data Sheet: Here

Suggested Press Adaptor: LM29609

LM15525: O.D. - 2.75", Width - 1.57", I.D. - 2.25"

Technical Data Sheet: Here

Suggested Press Adaptor: LM29611

LM15526: O.D. - 47.6mm, Width - 27.3mm, I.D. - 40mm

Technical Data Sheet: Here

Suggested Press Adaptor: LM29606
