ADJUSTABLE UPPER CONTROL ARMS - TOYOTA

Improve droop travel, drivability and tire wear as well as adjusting tire position in your wheel well with adjustable front upper control arms. Featuring an upgraded grease-able ball joint and SpecRide™ bushings, this arm is designed to correct alignment angles while maintaining factory ride quality. The integrated tubular and cast steel designs provide the strength and durability needed for the most demanding environments. These remove and replace arms are sold in pairs.

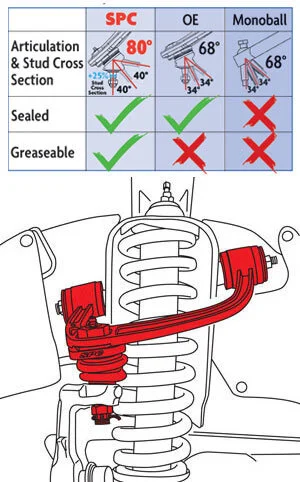

• Get more droop travel: The arm has improved clearance to get around the spring bucket. With 80° of articulation in the upgraded ball joint and free pivoting bushings, SPC's arm gives you maximum droop travel.

• Get your drivability and tracking back: When you lift your truck you affect caster and camber. The arms have +1° of caster built into them. Using its patented ball joint design the arm will get you 0° to +4° of caster and ±2° of camber, so you can put your alignment angles back to specification.

• Get your tire where you want it in the wheel well: Use adjustment in the control arm and on the OE lower cams to maximize alignment angles and move over sized tires forward in the wheel well to minimize or avoid fender trimming.

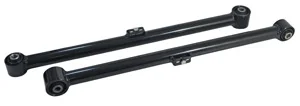

• Do you need heavy duty rear lower control arms? Check out LM25955, which are more than 2x stronger than the OE arms.

  Installation time: .8 hr/side
  Patent No. US 7,513,514 B1

  FAQ: Here

LM25455 - For 1998 to 2007 Landcruiser 100 Series

Adjustment range: Camber ±2.0°
Caster -1.0° to +3.0°

Installation Instructions: Here

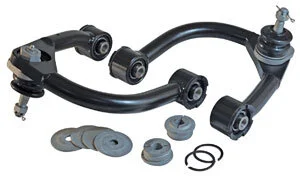

LM25460 - For the 1998 to 2004 Tacoma PreRunner; 1995 to 2004 Tacoma; 1996 to 2002 4Runner.

Adjustment range: Camber ±2.0°
Caster 0.0° to +4.0°

Installation instructions for Arms with SpecRide Bushings: Here

Installation instructions for Arms with xAxis Sealed Flex Joints: Here

LM25465 - For the 2008 and up Landcruiser 200 Series

Adjustment range: Camber ±2.0°
Caster 0.0° to +4.0°

Installation instructions: Here

LM25470 - For the 2005 and up Tacoma PreRunner and Tacoma

Adjustment range: Camber ±2.0°
Caster 0.0° to +4.0°

Installation Instructions: Here

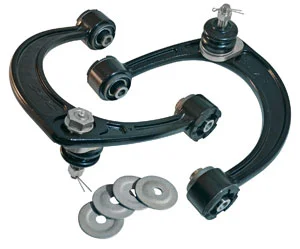

LM25480 - For the 2007 to 2014 FJ Cruiser; 2003 and Up 4Runner

Adjustment range: Camber ±2.0°
Caster 0.0° to +4.0°

Installation Instructions: Here

LM25485 - for the 2001 to 2007 Sequoia; 1999 to 2006 Tundra

Adjustment range: Camber ±2.0°
Caster 0.0° to +4.0°

Installation Instructions: Here

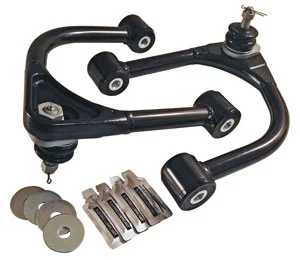

LM25490 - For the 2007 and Up Tundra; 2008 and Up Sequoia

Adjustment range: Camber ±2.0°
Caster 0.0° to +4.0°

Installation Instructions: Here

FAQ: Here

Find out more about ball joint articulation when you lift your vehicle in this video:

ALSO AVAILABLE:

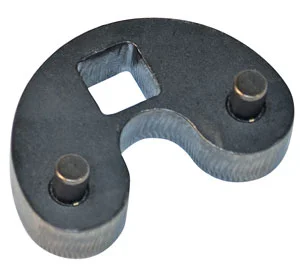

LM25008 STEERING KNUCKLE ADAPTER SERVICE KIT
