NISSAN FRONT UPPER CONTROL ARMS

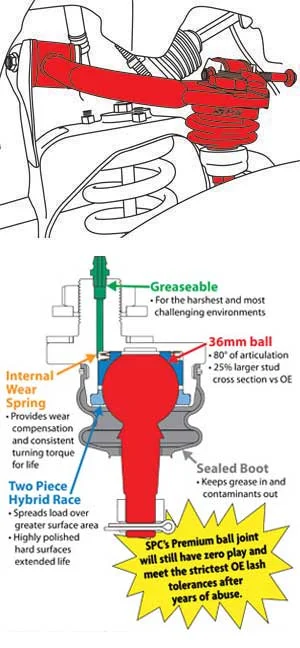

Improve droop travel, drivability and tire wear as well as adjusting tire position in your wheel well with these adjustable front upper control arms. Featuring an upgraded grease-able ball joint and SpecRide™ bushings, this arm is designed to correct alignment angles while maintaining factory ride quality. The integrated tubular and cast steel designs provide the strength and durability needed for the most demanding environments. These remove and replace arms are sold in pairs.

• Get more droop travel: Improved clearance to get around the spring bucket. With 80° of articulation in the upgraded ball joint and free pivoting bushings, this arm gives you maximum droop travel.

• Get your drivability and tracking back: When you lift your truck you affect caster and camber. These arms have +1° of caster built into them. Using its patented ball joint design the arm will get you 0° to +4° of caster and ±2° of camber, so you can put your alignment angles back to specification.

• Get your tire where you want it in the wheel well: Use adjustment in the control arm and on the OE lower cams to maximize alignment angles and move oversize tires forward in the wheel well to minimize or avoid fender trimming.

• Do you need replacement cams for the lower control arm? Check out LM87520, which will replace corroded cam bolt assemblies, or can be used on trucks not equipped with factory cam bolts for the lower control arm. These cams should be used with the upper arm kit to maximize your set-up.

  LM25540: Front Adjustment range
  Camber: ±2.00°
  Caster: +1.0° to +3.00°
  Installation time: .8 hr/side
  Required: 1 per axle
  Applications:
  NISSAN: 2005 & Up Frontier, 2005 - 2012 Pathfinder, 2005 & Up Xterra
  Installation Instructions: Here

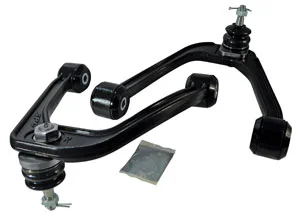

  LM25560: Front Adjustment range
  Camber: ±2.00°
  Caster: +1.0° to +3.00°
  Installation time: .8 hr/side
  Required: 1 per axle
  Applications:
  NISSAN: 2004 & Up Armada, Titan

  Installation Instructions: Here

FAQ: Here
Patent No. US 7,513,514 B1
